Innate lymphoid cell subsets and their cytokines in autoimmune diseases Volume 31, issue 4, December 2020


  • Figure 1



Innate lymphoid cells (ILCs) are a part of the innate immune system, and are tissue-resident lymphocytes that are mainly found in the mucosal membranes of the body, such as the skin and intestines [1]. These cells are also located in lymphoid tissues such as lymph nodes, as well as in adipose tissues [2, 3]. ILCs are morphologically similar to B and T lymphocytes, but the recombination-activating genes (RAG) in ILCs are inactive, and they are not able to carry out the rearrangement activity needed to produce a repertoire of different immunoglobulin receptors or T-cell receptors (TCR) [4]. Similar to other lymphocytes, ILCs originate from common lymphoid progenitors (CLPs) in the fetal liver and the adult bone marrow [5]. ILCs are classified into three subgroups based on their capability to express transcription factors and cytokines, which are called ILC1, ILC2, and ILC3. ILC1 cells include natural killer (NK) cells that express T-bet and eomesodermin, while other ILC1s express only T-bet. Interferon γ (IFN-γ) is produced by ILC1s. ILC2s are somewhat similar to Th2 cells in that they express GATA-3 and secrete IL4, IL5, and IL13. The RAR-related orphan receptor gamma (RORγ) is expressed by ILC3s that also synthesize IL-17A and IL-22. In a general classification, ILCs can also be divided into helper cells (IL7Rα+) that include ILC1, ILC22, ILC3, and cytotoxic cells (IL7Rα-), including cNKs. Lymphoid tissue inducer (LTi) cells are a subtype of ILC3s that play a major role in the formation of secondary lymphoid tissues [6-9]. In addition, ILCs are key mediators in tissue stromal cell homeostasis, tissue remodeling and repair, and early immune responses to infections and inflammation [1]. Autoimmune diseases are caused by a disruption in the body's own immune tolerance mechanism, followed by an unregulated attack against the host cells. Discovering the underlying mechanisms of autoimmune diseases can be of great help in treating these disorders [10]. There are several contributing factors to autoimmune disease such as self-recognizing immune cells with or without autoantibodies. There are similarities in some of the etiologic features and pathogenesis mechanisms of different autoimmune diseases. These similarities lead to the approaches used in the treatment of these diseases also bearing some similarities [11]. One of the cell types involved in autoimmune disease is the innate lymphoid cells (ILCs). Many studies have investigated the role of these cells in the development of autoimmune diseases [12, 13]. Our objective in this review is to summarize the relationship between ILCs and diseases such as atopic dermatitis, psoriasis, systemic lupus erythematosus (SLE), multiple sclerosis, rheumatoid arthritis, irritable bowel disease (IBD), systemic sclerosis, and juvenile dermatomyositis (JDM).

Development and differentiation of ILC lineages

A new family of lymphoid cells discovered within the body was called ILCs, which include cytotoxic (natural killer [NK] cells) ILCs, and helper ILCs, both of which play an essential role in the body's innate immune system. ILCs are identified based on the expression of CD127 and are classified into three groups according to the transcription factors (TF) and cytokines that they produce. ILCs in Group 1 (ILC1s) express the TBX21 gene encoding T-BET, and produce gamma interferon (IFN-g) and tumor necrosis factor alpha (TNF-a), which are both T helper (TH) 1-associated cytokines. ILCs in Group 2 (ILC2s) express GATA-3 and related orphan receptor A (RORA) and secrete TH2-related cytokines such as IL-5 and IL-3. ILCs in Group 3 use RORC to produce IL-17 and IL-22 (TH17-related cytokines) [14-17].

Hematopoietic stem cells (HSCs) give rise to all the different blood cell progenitors, among which common lymphoid progenitors (CLPs) are precursors of all the ILC subtypes as well as B cells and T cells [18, 19]. Recently, an early ILC progenitor, also known as the common innate lymphoid progenitor (CILP), was identified as CXCR6+ cells within the αLP population [20]. This progenitor is dependent on the transcription factor NFIL3 (nuclear-factor, interleukin 3 regulated) basic leucine zipper [21]. After the αLP, the lineage divergence of ILC population has been shown to be the common helper-like innate lymphoid progenitor (CHIP: Id2+ Lin− IL-7Ra+ α4β7+ CD25− PLZF+/−) [22]. In addition, lymphoid tissue inducer (LTi) cells as well as CD4+ T-cells can be derived directly from CHILP [6]. Cells with a high level of PLZF (promyelocytic leukemia zinc finger protein) and α4β7/Lin-/IL-7Ra+/cKit+ and CXCR6- are defined as the innate lymphoid cell progenitor (ILCP) population that originates from the CHILP [19]. Recently it has been shown that both cytotoxic and helper ILCs can be derived from RORgt+ ILCPs [23]. Also one study found that peripheral blood (PB) CD117+ cells (multi-potent ILCPs) led to various ILC subsets both in vivo and in vitro, including EOMES+ NK cells. While CD117+ cells are considered to be the same as circulating ILC3s, a study showed that peripheral blood CD117+ ILCs were different from gut CD117+ ILCs (NKp44 and RORgt). Circulating CD117+ ILCs express IL-1R1+, CD45RA+, CD69 (while gut resident ILC3s are CD69+, IL-1R1, CD45RA) and do not express the proteins T-BET or EOMES. CD117+ ILCs express high levels of TFs (ID2, GATA3, TOX, and TCF7) which have been shown to be essential for murine ILC development. These results suggest that peripheral blood CD117+ ILCs differ from ILC3s and may represent an unusual ILC subset. They may be lymphoid-biased progenitors reminiscent of multipotent ILCPs carrying a TF profile with a key signature of mature ILC genes. They demonstrated that human CD117+ ILCPs developed from CD34+ HSCs in vivo. Their model for human ILCP development suggested that pluripotent CD34+ HSCs could differentiate into multipotent ILCPs (CD34 CD7+ CD127+ CD117+ CD45RA+) with the potential to become ILC1s, ILC2s, ILC3s, and EOMES+ NK cells (table 1) [17].

ILCPs generate all the ILC subsets, but may be unable to produce NK cells or LTi-like subsets. A deficiency in the expression of PLZF (promyelocytic leukemia zinc finger) led to defective development of ILC1s and ILC2s, but PLZF was not necessary for development of all ILCs. Since GATA-3 is expressed in ILCPs, several models of GATA-3 deficiency have shown to be significantly associated with a decrease in ILC1s, ILC2s, and in some cases in ILC3s (but not NK cells or LTi-like cells) [22, 24, 25]. ILCs are a heterogeneous population of immune cells with two main features: A) They have a lymphoid origin derived from CLPs and are related to IL-2Rγc signaling. B) These cells lack specific antigen receptors and therefore do not require RAG proteins for their development [16]. cNK and ILC1 cells respond to intracellular pathogens such as intracellular bacteria and viruses [26]. Both types of cells express the activating receptors of cNK cells, for example NK1.1 and NKp46, but often ILC1s do not have the activating and inhibitory receptors such as the Ly49 family that recognizes the MHCI molecule expressed on normal tissues [27]. ILC1s are different from cNK cells that require the transcription factor T-bet for lineage specificity [28]. Also, the PLZF transcription factor is important for the development of ILC1s, but it is not necessary for cNK cells. Finally, the GATA3 transcription factor is crucial for the development of ILC1s, although it has not been clearly determined yet whether or not this factor is important for cNK cell development. cNK cells may be directly derived from CLPs [6, 24]. It should be noted that the requirement for NFIL-3 transcription factor for the development of ILC1s may not be needed after infections or exposure to environmental factors [29].

In addition, two separate groups of IFN-g-secreting ILC1s have been described. One group is T-BET+ cells that express high levels of CD127 and CD161 [28]. Another group called intraepithelial ILC1s are present at mucosal sites, and are CD103+, NKp44+, and CD127[30]. Both these ILC1s react to IL-12 by producing IFN-g, but unlike NK cells, they express minimal EOMES. Human GATA-3+ ILC2s express the chemoattractant receptor CRTh2, IL-25R, and IL-33R. They also produce IL-5 and IL-13 in physiopathological situations [31, 32].

ILC2s are present in various tissues including the lungs, bone marrow, intestinal lamina propria, skin, and liver [33]. The secretion of IL-3 and IL-5 by ILC2s is considered essential for protection against helminth and nematode infections [34]. Recently, it has been found that the development of ILC2s is dependent on GATA-3, ROR α, TCF-1, and Notch transcription factors [35]. Other factors such as vitamin A and food-derided metabolites play an important role in the differentiation and maturation of ILCs2 [36]. Furthermore, specific functional ILC2s require Gfi1, as shown by a lack of the Gfi1 gene resulting in the nonexpression of GATA3 [37].

ILC3s include RORγt fetal lymphoid tissue-inducer (LTi) cells (in fetal lymphoid tissues) and CD127+, CD117+ lineage cells, which secrete IL-17A in response to IL-23. In addition a subset of ILC3s express the natural cytotoxicity receptors (NCRs) and IL-22 [38, 39]. In Group 3 ILCs (ILC3s), the retinoic acid-related orphan receptor γt (RORγt) is expressed in both humans and mice, which is necessary for the development of this group. The lack of RORγt in animal models resulted in impaired development of ILC3s. Subunits of ILC3s express cell surface markers, such as NKp46, NKG2D, NKp44, and CD56 [39, 40]. IL-23 and IL-1 stimulate the expression of RORγt+ in ILC3s, and production of IL-22 and IL-17 [18, 41, 42]. ILC3s can be either NKP46+ that express a high level of CCR6, or NKP46- that express only low amounts of CCR6 [43, 44]. Lymphoid-tissue-inducer (LTi) cells are another subset of ILCs that use the RORγt transcription factor to enhance the formation of secondary lymphoid tissue in the fetus [21]. Deletion of GATA3 causes loss of the PLZF+ non-LTi progenitors, but not the LTi progenitors, which express RORγt. The GATA3 expression is always high in PLZF+ non-LTi progenitors, whereas it is low in RORγt+ LTi progenitors. In a study by Zhong et al. they showed that non-LTi and LTi progenitors required the Id2 transcriptional regulator for their generation, but could be distinguished from each other by differential requirements for the transcription factor GATA3. Nonetheless, for the generation of functionally mature LTi cells, a low level of GATA3 expression was required [45].

Cytokines produced by innate lymphoid cells

ILCs are divided into two main groups, identified as cytotoxic ILCs and helper ILCs, similar to CD4+ and CD8+ T cells. The helper ILC group includes 3 subgroups, whereas the cytotoxic ILC group includes natural killer (NK) cells [26]. According to previous surveys, there are at least three types of ILCs, which produce their own individual cytokines and immune responses. Each type of ILCs has its own unique transcription factor profile. To date, 4 groups of ILCs have been defined: ILC1s or NKs (group 1 ILCs), ILC2s (group 2 ILCs), ILC3s or LTi cells (group 3 ILCs), and NK17/NK1 cells (ILC4s) [46]. The interleukin-7 receptor subunit alpha (IL-7Ra) is a common characteristic along with the absence of other common cell lineage markers [47]. In another study by L. Mazzurana et al., it was found that the growth of helper ILCs depends on IL17 because they express IL-7Ra, but this finding could not be generalized to NK cells [48].

ILC2s express CD45, IL-17RB (a receptor for IL-25), IL-33R ST2, ICOS (CD278), CD127, and Thy1, although lineage-specific cell-surface markers are not expressed on the surface of this group of ILCs [49, 50]. Innate cytokines such as IL-33 and IL-25 can be produced by ILC2s (Lin- CD127+ ILC subset) that in turn induce the production of IL-13 and IL-5 [49-51]. For example, ILC2s contribute to pro-inflammatory responses in various organs, such as the respiratory tract and nasal cavity, and can also play an important role in the defense against helminth infections such as those caused by Nippostrongylus brasiliensis, Trichuris muris, or Strongyloides venezuelensis[49, 50]. Thus, the lineage negative CD127+ ILC subset appears to regulate TH2 cells in innate immunity. According to recent studies, endogenous TSLP or IL-7 is required for triggering STAT5 signaling, and ILC2s use this signaling pathway for the production of IL-5 and IL-13 [50]. The NF-kB and mitogen-activated protein kinase (MAPK) signaling pathways could be downregulated by IL-25 as well as by IL-1 family members. Activation of these signaling pathways will result in high levels of IL-5/IL-13 expression by ILC2s. In this regard, several unknown interactions may exist between IL2 and Th cells, which are not yet fully understood [49, 50]. Previous studies showed that IL-2 may induce ILC2 immune responses and ILC2s could have a role in the differentiation of TH2 cells from naive T cells in a manner depending on cell-to-cell contact [49]. TH2 cells are unable to produce IL-4 or IL-13 in response to IL-25 or ILC2s. This ability may be acquired after stimulation with the cognate antigen or by treatment with PMA/ionomycin [50].

ILC1s, including NK cells and noncytotoxic helper ILC1s, produce TNFα and INFγ as the main cytokines after stimulation by IL12 and IL18 cytokines [46, 48]. These cells do not release cytokines related to TH2 or TH17 cells [46]. The T-box transcription factor 21 (Tbx21) encodes the immune cell transcription factor called T-bet that controls the growth of TH1 cells [52]. The role of T-bet is significant in both the innate and acquired immune systems because it is expressed at high levels by the ILC1 subgroup in humans [46, 52]. The EOMES gene encodes the T-box brain protein 2 (Tbr2) known as eomesodermin. Both T-bet and eomesodermin are transcription factors that are needed for the development of NK cells. In one study by Liying Guo et al., they described the prototypic form of ILCs as NK cells which express IL-7Ra (CD127) and the cytokine common gamma (gc) receptor chain which allows them to function as cytotoxic ILCs. In fact, the collaboration of two T-box transcription factors may be needed for the complete function of NK cells. Conventional NK (cNK) cells and thymic NK (tNK) cells are two distinct types of NK cells that both produce IFNγ. Depending on the amount of IFNγ. produced, they can be classified as ILC1s. They produce IFNγ to provide help to Th1 CD4+ cells in the innate immune response [50]. CD56bright NK cells release more cytokines such as IFNγ. The characteristic features of human IFN-γ-secreting ILCs are a high expression of T-bet, moderate expression of RORγt, and no expression of CD117 or EOMES transcription factor. The third group of ILCs is made up of lymphoid tissue inducers (LTis) and ILC3s (Lin− CD127+ RORγt+) which can produce IL-17A and IL-22 in the same way as TH cells. Moreover, IL-22 is produced by NCR+ ILC3s (NK22 cells, NCR22 cells, or NKR-LTi cells) when they induce lymphoid cell populations within the gastrointestinal tract [46].

ILCs in homeostasis and immunity

The majority of ILCs are found in epithelial barrier surfaces such as the mucosal surfaces, skin and lungs. The ILCs present in these surfaces play an important role in maintaining homeostasis and tissue integrity [53]. The presence of ILCs in these tissues, particularly in the intestinal lumen, is necessary for maintaining tissue integrity and encouraging regeneration after inflammatory conditions [54, 55]. ILC precursors express the α4β7 integrin that interacts with the MadCAM-1 adhesion molecule that is highly expressed on the vascular endothelial surface of mucosal lymphoid tissue such as Peyer's patches. These cells also express the chemokine receptor CXCR6 that helps the cells to migrate into the intestinal tissue [56, 57]. Acquired immune cells modulate the ILC response through various mechanisms such as regulatory T lymphocytes (Tregs) that control the proliferation of NK cells and ILC2s by lowering IL2 [58, 59]. During the inflammatory processes caused by infections in the intestinal tract, ILC2s release amphiregulin (a ligand for the EGF receptor) in response to the IL33 that is secreted by intestinal tissue. Activation of the EGF receptor in the intestine leads to the production of extra mucin, which has an important role in protecting against invading microorganisms in the bowel [60]. The tuft cells of the intestinal tissue secrete IL25 in response to infection by helminth species, which is activated by ILC2s, and subsequently these cells will produce IL13. These cytokines enable intestinal stem cells to differentiate to tuft cells and goblet cells, resulting in the elimination of infection in the intestinal tract [61, 62]. In the nervous system, the neuromedin U (NMU) neurotransmitter could be released in response to helminth infection. ILC2s express receptors for NMU, which could affect IL-5, IL-13, and amphiregulin all produced by ILC2s and which play a role in tuft-and-goblet cell differentiation [63, 64]. Influenza virus infection and its associated lung inflammation is responsible for the production of IL33 by epithelial cells as a result of activation of ILC2s in the lungs [65]. IL22 is essential for defense against enteropathogenic bacteria and viruses. A high level of IL22 is produced by ILC3s, which leads to the expression of Reg3 proteins in the epithelial cells that also play a protective role against bacterial infections [55, 66]. Activation of the STAT3 pathway by ILC3s can stimulate the production of mediators that induce proliferation of intestinal epithelial cells, and repair damaged gut cells after chemotherapy [67]. ILCs also play a role in host metabolism. ILC2s are active in fatty tissue in response to IL-33, and release methionine enkephalin peptides that affect adipocyte precursors and result in the formation of “beige” adipocytes. This process requires a large amount of energy, resulting in weight loss in the host [68]. ILC1s are activated in the adipose tissue via IL-12 leading to an increase in IFN-γ, and the production of macrophages with a more inflammatory phenotype, leading to the development of insulin resistance in the adipose tissue [69, 70].

ILC plasticity

ILCs in humans display a significant amount of plasticity. The abundance of ILCs present at mucosal surfaces suggests that these cells should be able to easily respond to environmental triggers. This flexibility in these cells is mainly due to their capability to interact with a variety of signaling pathways. ILC1s can produce IFN-γ and are dependent on the T-bet transcription factor. Cells that are similar to ILC1s could be generated from ILC2s and ILC3s under certain conditions, and these cells are also linked to the T-bet transcription factor [28, 30]. In humans ILC3s can be converted into ILC1s by the IL12 produced by CD14+ DCs under inflammatory conditions, and go on to induce the expression of T-bet, which activates the Notch2 signaling pathway. During this process, the expression of the RORγt transcription factor disappears and the production of IL22 is lower, although it does increase the production of IFN-γ. This process is reversible by the action of IL2 and IL3 cytokines [28]. In inflammatory conditions, such as Crohn's disease or chronic obstructive pulmonary disease, ILC2s can be converted into ILC1s by the effects of IL-12 and IL-1β cytokines, as well as the transcription factor T-bet. This process can be reversed under the influence of IL 4 [71, 72]. The transformation of NK cells into ILC1-like cells in mice exposed to TGF-β and the SMAD4 transcription factor has been reported in the tumor microenvironment [73].

ILC subsets in autoimmune diseases

Juvenile dermatomyositis (JDM)

Juvenile dermatomyositis (JDM) is a systemic autoimmune disease characterized by skin and muscle symptoms in children. JDM may also affect other vital organs. The incidence of the disease is 2-4 cases per million children [74, 75]. In the pathogenesis of this disease, both the acquired immune system (B lymphocytes and T lymphocytes) and the innate immune system (NK cells) are involved [76]. According to the findings, the percentage of B cells and CD4 T cells in the blood of patients with JDM is increased compared to control groups, and autoantibodies can be detected in more than 60% of these patients [76, 77]. Evidence suggests that NK cells may also be involved in the pathogenesis of JDM, because studies have shown that NK cells are decreased in patients with JDM compared to controls [78]. NK cells as innate lymphocytes play an important role in antiviral and antitumor defenses through the release of cytotoxic granules and some cytokines [79]. According to some studies, NK cells can also act as immunoregulatory cells, and therefore defects in these cells may lead to autoimmune diseases [80]. In patients with JDM, increased B cells and naive CD4+ T lymphocytes, and decreased NK cells have been detected in peripheral blood compared to a control group, which could suggest a possible link between these cell types and the disease [76, 78, 81]. Alterations in the PLCγ2 signaling pathway in NK cells leading to dysregulated PLCγ2 signaling were detected in treatment-naive JDM patients compared to a control group, leading to a decrease in NK cell cytotoxicity in JDM [76]. Thus, impaired immune regulation may be a major factor in the development of JDM. According to the regulatory role of NK cells in the human immune system, it can be concluded that their reduction may be involved in pathogenesis of JDM.

Atopic dermatitis

Atopic dermatitis (AD) is a chronic autoimmune skin disease. A dysfunctional epithelial barrier due to mutations in the filaggrin gene and defects in the immune system are the main causes of AD [82, 83]. Filaggrin is considered one of the most important skin proteins. A filaggrin deficiency can have a significant effect on epidermal formation and function [84]. ILC2s are present in healthy skin, and recent studies have shown that ILC2s may have a significant impact on the pathogenesis of allergic conditions such as AD [85]. In one study by Mashiko et al. [86] they showed that Th2 cells and ILC2s were upregulated in the skin lesions of patients with AD. ILC2s and Th2 cells are responsible for the creation of type 2 immune responses [87]. ILC2s in the skin lesions of patients with AD expressed high levels of CD25/IL-33R/CRTH2/CD161 [88]. Prostaglandin D2 (a ligand for CRHT2) is secreted by mast cells upon activation and results in the accumulation of basophils and ILC2s at different sites within the skin [86, 89, 90]. ILC2s can be activated by TSLP, IL-25, IL-33 (epithelial cytokines), IL2, IL4, IL7, IL9 (cytokines produced by Th cells), PGD2, and cysteinyl leukotriene (lipid mediators) [38, 85]. Activated ILC2s produce IL4, IL5, IL13 (type 2 cytokines), and amphiregulin that collectively could cause skin inflammation [91].


Psoriasis is a chronic skin disorder characterized by the involvement of the innate and adaptive immune systems, dysfunction of keratinocytes, epidermal hyperproliferation, and the formation of erythematous and scaly plaques [92-94]. The main underlying etiology of this disorder is primarily inflammatory cytokines such as TNF-α, IL17A, IL23, IL-22, and IFN-γ. The major sources of IL17 are the γδ T cells, αβ T cells, neutrophils, mast cells, iNKT cells, both adaptive and natural Th17 cells, Tc17 cells (a subset of CD8+ cells) and ILC3s [95]. Lande et al. showed that activation of CD4+ and/or CD8+ T cells against cathelicidin (an antimicrobial peptide) is observed in two-thirds of psoriatic patients, and cathelicidin is also known as the psoriasis autoantigen. The expression of cathelicidin by keratinocytes is upregulated by IL17 and subsequently results in an increased production of LL37 (another antimicrobial peptide) that is involved in inflammation. Moreover, ADAMTS-like protein 5 (ADAMTSLP5) acts as an autoantigen in psoriasis and is produced by melanocytes resulting in the overexpression of IL-17A and IFN-γ [95-97]. One of the most important cell types involved in psoriasis are ILCs. Teunissen et al. showed that both ILC2s and NCR-ILC3s were dominant in healthy skin, whereas NCR+ ILC3s were present in both the skin lesions and the peripheral blood of psoriatic patients. Both IL-1β and IL-23 were able to convert NCR- ILC3s into NCR+ ILC3s in cell culture [98]. Both of these cytokines induced NCR+ ILC3s and promoted IL-17A and IL-22 production [99]. Similarly, Wawrzycki et al. [100] showed that IL-22 levels were higher in psoriatic patient serum and IL-22 could be considered to be a target for therapy. Although IL17C is a dominant cytokine in skin lesions (compared to other IL-17 family members), IL-17A is thought to be more active in the skin and plays an important role in psoriasis pathophysiology [95, 101]. IL17A affects endothelial cells, chondrocytes, fibroblasts, synovial cells, monocytes, and keratinocytes. IL17A and IL17F stimulate keratinocytes resulting in the production of cytokines, β-defensins, antimicrobial peptides, IL-8, CCL20, and CCL2, all of which can attract neutrophils, macrophages, lymphocytes, and monocytes into the lesions. All of these molecules have been found to be increased in psoriatic plaques [102]. TNF-α has a main role in the onset of inflammation, and in combination with IL-17, can lead to increased gene expression in keratinocytes that are involved in the development of lesions in psoriatic patients [95].

Systemic sclerosis (Scleroderma)

Systemic sclerosis (Ssc or scleroderma) is a chronic multisystem connective tissue disease defined by increased collagen production by fibroblasts, resulting in progressive fibrosis of the skin and visceral organs, with an autoimmune inflammatory background. This disease is also characterized by widespread functional and structural abnormalities in the small blood vessels of the skin [103, 104]. Despite 50 years’ research on this topic, the basic pathogenesis mechanisms of Ssc are still unknown [105]. Studies have shown that immune cells, such as regulatory T cells (Tregs) and T-helper 17 (Th17) cells, as well as ILCs, may be involved in the pathogenesis of Ssc [103]. A study by Florence Roan et al. found that the number of CD4+ ILC1s and NKp44 ILC3s, but not CD4ˉ ILC1s or ILC2s, were increased in the peripheral blood of individuals with SSc, a disease characterized by fibrotic vascular pathology, and immune dysregulation. Therefore, the authors suggested that CD4+ and CD4ˉ ILC1s may have a role in the pathogenesis of SSc [106]. Another study by Mayuka Horikawa et al. on Ssc patients showed that the frequency and absolute number of NK cells were increased in diffuse cutaneous SSc (dcSSc), whereas they were normal in limited cutaneous SSc (lcSSc). NK cells from both dcSSc and lcSSc patients exhibited an activated phenotype characterized by upregulation of CD16 and CD69 and downregulation of CD62L expression. IFN-γ production by nonstimulated NK cells from both dcSSc and lcSSc patients was higher compared to normal controls, whereas on stimulation, a reduced amount of IFN-γ was produced. IL-5 and IL-10 production by nonstimulated NK cells and IL-6 production by stimulated NK cells were increased in dcSSc patients, but not in lcSSc patients. Thus, these results suggested that altered NK cell function led to immunological abnormalities in Ssc [104].

Systemic lupus erythematosus

Systemic lupus erythematosus (SLE) is a chronic autoimmune disease that can involve several different organ systems [107]. Dysregulation of the innate and adaptive immune systems is known to be the main cause of SLE [108]. Recently, a possible link between ILCs and SLE has been reported. Guo et al. showed that ILC1s were the dominant type of ILCs in the peripheral blood of patients with SLE, whereas ILC2s and ILC3s were markedly reduced. This study found that in patients with renal lesions, the ratio of ILC1s/ILCs was considerably higher than in patients without renal lesions [12]. In another study, the number of ILC1s (Lin-CD127+ CD45+ CRTH2-CD117-cells) and ILC3s (Lin-CD127+ CD45+ CRTH2-CD-117+ cells) was associated with nephritis in SLE patients, whereas the levels ILC2s were lower in these patients [109]. In an animal model, the expression of cytokines by kidney-resident ILC2s was shown to be suppressed by IFN-γ and IL-27 which were produced by activated T cells in the nephritic kidneys [110].

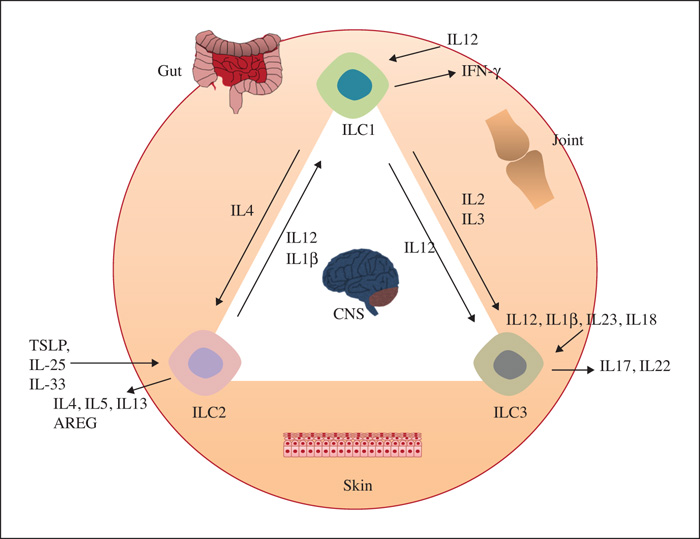

Multiple sclerosis(figure 1)

Multiple sclerosis (MS) is another autoimmune disease that attacks the central nervous system (CNS), and is characterized by demyelination of neurons resulting in a debilitating illness [111, 112]. Mouse models have shown that ILC1s and ILC3s play an important role in the neuronal inflammation, by increasing the proliferation of T cells within the CNS. By contrast, the activation of ILC2s led to decreased T cell responses in the CNS and reduced inflammation [113]. The T-bet+ ILCs contain both ILC1s and ILC3s, which stimulate the expression of matrix metalloproteinases (MMPs) and pro-inflammatory chemokines. CD4+ T lymphocytes such as TH17 cells then gain entry into the brain parenchyma. These T cells are responsible for the production of inflammatory cytokines within the CNS [114]. In the CNS, ILC2s can be activated by IL33 resulting in a decreased number of TH17 and TH1 cells, ultimately leading to reduced CNS inflammation in a mouse model [115, 116].

Rheumatoid arthritis(figure 1)

Rheumatoid arthritis (RA) is a chronic autoimmune disease that primarily affects the joints and ultimately leads to the destruction of bone and cartilage [117]. ILCs are involved in the pathogenesis of RA, and possibly other chronic inflammatory diseases, based on the known involvement of IL7 and IL7-R, and alpha-beta lymphotoxin in the development of RA disorders. Increasing the expression of IL7 causes the induction of alpha-beta-lymphotoxin in RA patients, leading to joint inflammation. In addition, increased expression of IL7-R in the synovial tissue has been observed. Therefore, administration of soluble IL7-R alpha might be considered a therapeutic approach for the management of RA [118]. In one study by Bekiaris et al. [13] they showed that a CD4+ CD3- innate-like lymphoid population of ILCs was present in the peripheral blood of RA patients. ILC3 is thought to be responsible for the production of IL5 and IL7 that are overexpressed in the joints of spondyloarthritis patients [119]. Moreover, it has been shown that ILC1s and ILC3s are present in the synovial fluid of RA patients and are positively correlated with the clinical severity of the disease [120]. One study showed that CD3− CD56+ NKp44+ CCR6+ cells were elevated in the peripheral blood and synovial fluid of RA patients. Although CD56 is known as an NK cell marker, it is also expressed on a subset of ILC3s. These ILC3-like cells secrete TNFα and IL-22 and stimulate the proliferation of RA fibroblast-like synoviocytes. Moreover, the frequency of ILC3-like cells in the synovial fluid of these patients was significantly associated with the 28-joint disease activity score, indicating that ILC3s played a major role in the disease development [121].

Inflammatory bowel disease(figure 1)


Inflammatory bowel diseases (IBD) are a chronic inflammatory condition and are divided into ulcerative colitis (UC) and Crohn's disease (CD). IBD is characterized by lesions in the intestinal mucosa and submucosa. Several intrinsic and extrinsic factors are believed to contribute to IBD pathogenesis including hereditary factors, environmental factors, altered gut microbiome, and inappropriate immune responses [122-124]. Patients suffering from long-term IBD are at increased risk for colon cancer [125]. Studies have shown that the dysregulation of IL17/IL23 as a result of disturbances in the innate and adaptive immune responses is associated with the development of IBD. In the context of the innate immune response, ILCs play an important role in the development of this disease. Forkel et al. demonstrated that there was increased expression of ILC1s in CD as well as ILC2s in UC, which were responsible for inflammation in different parts of the gastrointestinal tract [123, 126, 127]. An alteration in the normal gut microbiome is seen in patients with IBD [128, 129]. Increased activation of macrophages in the mucosa and submucosa is also present in these patients [130]. Microbial stimuli induce macrophages and dendritic cells to produce IL1β, IL12, IL18, and IL23. The impact of these cytokines on the ILC3s leads to increased production of IL17 and IL22. Epithelial cells are also stimulated by IL17 to produce IL-1β, IL-6, and TNFα (pro-inflammatory cytokines) as well as chemokines. The high chemokine levels can induce neutrophil migration and also cause disruption of junctional proteins and cause gut permeability [123, 131, 132]. ILC3s can produce granulocyte-macrophage colony-stimulating factor which affects myeloid cells leading to increased inflammation [133]. In the case of a vitamin A-deficient diet, IL22 production is reduced by ILC3s, which predisposes individuals to Citrobacter rodentium infection [36, 134]. ILCs also express the death domain receptor 3 (DR3). Microbial and nonmicrobial antigens increase TL1A expression in mononuclear phagocytes such as DCs and macrophages within the intestinal lamina propria. The presence of IL1β, IL23, IL2, and the TL1A/DR3 signaling pathway resulted in ILC3 proliferation and increased IL22 levels [135].


There are similarities and differences between ILCs and B/T lymphocytes indicating that their roles in autoimmune disease may be complex [2]. The mechanisms of some autoimmune diseases are incompletely understood, but the presence of ILCs in epithelial barrier surfaces and their role in immune responses have been well demonstrated. ILCs are mostly located in secondary lymphoid tissues and are involved in regulating adaptive immune cells. This regulatory activity can be either by direct or by indirect interactions including MHCII:TCR, CD28:B7 members, TNFSF:TNFRSF members [2, 136]. Moreover, cytokine secretion, e.g. the production of IL-10 by NK cells, can suppress B and DC cells. The role of these cytokines in the pathology of autoimmune diseases has been widely studied. ILCs are associated with many autoimmune diseases, and their pathophysiology is mainly related to production of T-cell cytokines. For example, ILC1s, ILC2s, and ILC3s are all involved in IBD development, and the cytokines involved are IFNγ, perforin, granzyme, IL-13, IL-17A/F, IL-22, and IL-26. On the other hand, the role of ILCs in the anti-tumor immune response has recently gained some attention, further underlining the particular importance of these cells [137-142]. Therefore, due to the presence of ILCs in most tissues and the broad range of ILC activity in various autoimmune-related diseases, these cells could be considered a possible treatment target for the management of autoimmune disorders in the future.


There is no conflict of interest to disclose.
